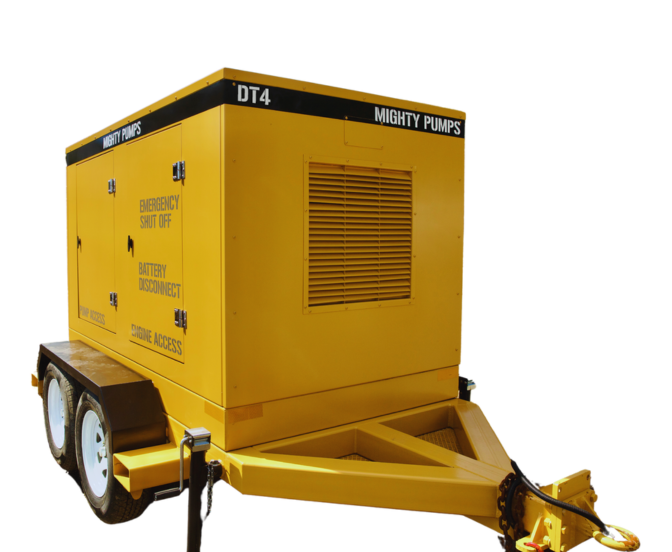

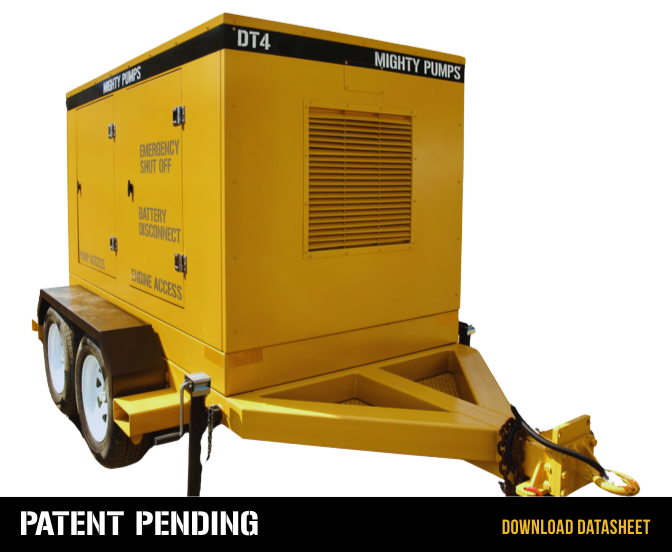

DT4 Mighty Pump

  • Overview
  • Performance
  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Dewatering Trash (DT) Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3 inches (76 mm) in diameter
  • Standard engine CAT C4.4 Mechanical-80 hp, also available in Yanmar 4TNV98-ZNSA Mechanical- 67.7 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that extends seal life- often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction industrial grade, off-road trailer with an internal 99 gallon fuel tank; exempt from TDG legislation. Optional highway certified industrial trailer with lights and automatic hydraulic brakes.
  • Protective Quiet Container is easily removable and reduces sound down to 70 dB at 28 ft away
  • Automatic priming system that sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • Automatic start/stop feature for water level control
  • At its Best Efficiency Point this pump is 79% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional, remote monitoring with live updates that include: pump’s global position, engine data and maintenance log
  • Warranted by MightyPumps™, Cornell and CAT/Yanmar- 2 year, 2,000 hour warranty

DT4 PERFORMANCE

Maximum Outflow
1,450 US gpm (5,450 L/min)
Shutoff Head
166 ft (50 m)
Solids Handling
3 inches (76 mm) Diameter
BEP with 15’ lift
1,250 US gpm @ 80 ft & 2,500 rpm

DT4 TECHNICAL SPECIFICATIONS

Engine
CAT C4.4 Mechanical-80 hp Continuous or Yanmar 4TNV98-ZNSA Mechanical-67.7 hp
Pump End
Cornell 4NNTL
Mounting
Dual axel, off road trailer
Sound Attenuation
Quiet Container / Residential Muffler
Fuel Tank Capacity
99 US gal (375 L)
Fuel Consumption (1800 rpm)
4.1 US gal/hr
Run Time* (1800 rpm)
24 hrs
Maximum Operating Speed
2,000 rpm
Max Case Pressure
150 psi (1,034 kPa)
Max Fluid Temperature
180°F (82°C)
Suction Inlet Size
4 inches 150 lb Flange
Discharge Outlet Size
4 inches 150 lb Flange
*one tank of fuel

MATERIAL SPECIFICATIONS

Volute
ASTM A48 Cast Iron
Wear Rings
ASTM A48 Cast Iron
Backplate
ASTM A48 Cast Iron
Impeller
ASTM A48 Cast Iron
Frame
ASTM A48 Cast Iron
Trailer
CSA G40.21 350W Steel
Shaft
Stress Proof SAE 1144 Steel
Shaft Seal
Tungsten Carbide vs. Silicon Carbide
Engine Bracket
ASTM A48 Cast Iron

GENERAL DIMENSIONS

Height
92 inches (2,337 mm)
Width
72 inches (1,829 mm)
Length
141 inches (3,581 mm)
Weight (Wet)
4,500 lbs (2,041 kg)
