DT8 Mighty Pump

  • Overview
  • Performance

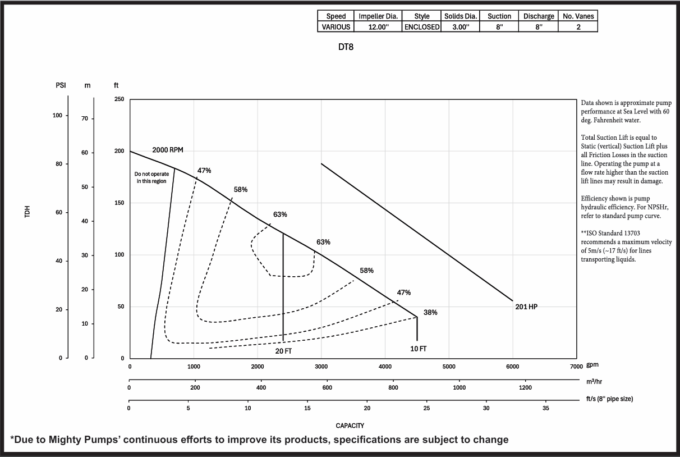

  • Pump Curve
  • Technical Specs
  • Pump Materials
  • Dimensions

PUMP FEATURES

  • Dewatering Trash (DT) Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3.38 inches (86 mm) in diameter
  • Standard engine CAT C4.4 Electronic-142 hp, also available in John Deere JD6068T Electronic- 150 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that extendsseal life- often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction industrial grade, off-road trailer with an internal 99 gallon fuel tank; exempt from TDG legislation. Optional highway certified industrial trailer with lights and automatic hydraulic brakes.
  • Protective Quiet Container is easily removable and reduces sound down to 70 dB at 28 ft away
  • Automatic priming system that sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • Automatic start/stop feature for water level control
  • At its Best Efficiency Point this pump is 81% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional remote monitoring with live updates that include: pump’s global position, engine data and maintenance log
  • Warranted by MightyPumps™, Cornell and CAT/John Deere- 2 year, 2,000 hour warranty

DT8 PERFORMANCE

Maximum Outflow
4,500 US gpm (17,034 L/min)
Shutoff Head
235 ft (72 m)
Solids Handling
3.38 inches (86 mm) diameter
BEP with 15’ lift
3,112 US gpm @ 135 ft & 1,800 rpm

Notice: Undefined index: sizes in /var/www/vhosts/mightypumps.com/httpdocs/wp-content/themes/mighty-pumps/single.php on line 219

DT8 TECHNICAL SPECIFICATIONS

Engine
CAT C4.4 Electronic-142 hp Continuous or John Eeere JD6068T Electronic-150 hp
Suction Inlet Size
Cornell 8NNT
Discharge Outlet Size
Dual Axel, Off Road Trailer
*one tank of fuel
Quiet Container / Residential Muffler
Pump End
99 US gal (375 L)
Mounting
6.5 US gal/hr
Sound Attenuation
15 hrs
Fuel Tank Capacity
1,800 rpm
Fuel Consumption (1800 rpm)
175 psi (1,206 kPa)
Run Time* (1800 rpm)
180°F (82°C)
Maximum Operating Speed
8 inches 150 lb Flange
Max Case Pressure
8 inches 150 lb Flange
Max Fluid Temperature

MATERIAL SPECIFICATIONS

Volute
ASTM A48 Cast Iron
Wear Rings
ASTM A48 Cast Iron
Backplate
ASTM A48 Cast Iron
Impeller
ASTM A48 Cast Iron
Frame
ASTM A48 Cast Iron
Trailer
CSA G40.21 350W Steel
Shaft
Stress Proof SAE 1144 Steel
Shaft Seal
Tungsten Carbide vs. Silicon Carbide
Engine Bracket
ASTM A48 Cast Iron

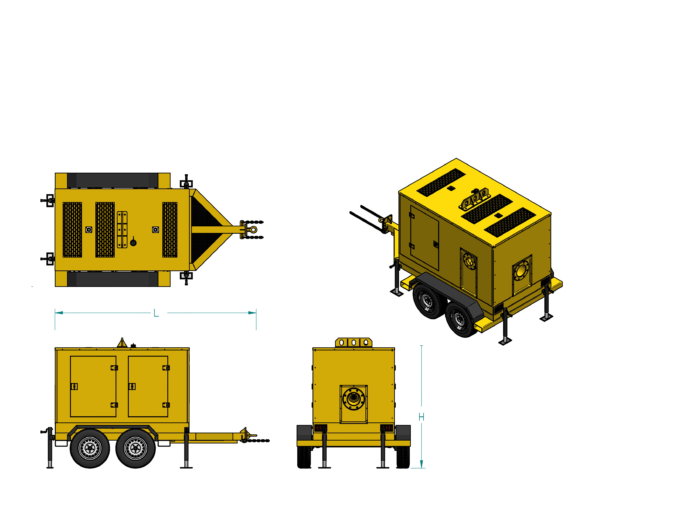

GENERAL DIMENSIONS

Height
92 inches (2,337 mm)
Width
72 inches (1,829 mm)
Length
141 inches (3,581 mm)
Weight (Wet)
5,250 lbs (2,381 kg)
